Vortex
Almex's air-cooled presses represent the pinnacle in quality portable lightweight belt presses. The Vortex is a fully integrated press assembly designed to splice PVC and PU lightweight belting in a continuous cycle. Just set the temperature, time and pressure and press the start button.
Features and Product Information
Features
• All-In-One
• Lightweight aluminum construction
• Press accommodates belt widths 400 mm / 16” to 1500 mm / 60”
• Low profile height: 200 mm / 8” high
• Temperature up to 200 ºC (392 ºF)
• Operating Pressure 2.1 KG/CM2 / 30 PSI
• Available in 110 or 220 volt single phase
• VX-1310 and VX-1610 also available in 460 Volt 3 phase
Product Information
Options:
- 110v or 220v
- Single or 3 Phase (for >51+ ")
- Remote Platen control via a phone or tablet application
- Cantilever stand
Specifications
| Model | Platen-size (Metric./.Imperial.) | Max Belt Width (Metric/Imperial) | Overall Length (Metric/Imperial) | Overall Width (Metric/Imperial) | Overall Height (Metric/Imperial) | Overall Weight (Metric/Imperial) |
|---|---|---|---|---|---|---|
| VX 510 | 160mm x 510mm / 6" x 20" l | 455mm / 18" | 585mm / 23" | 230mm / 9" | 205 mm / 8" | 27 kg / 59 lb |
| VX 710 | 160mm x 710mm / 6" x 28" l | 660mm / 26" | 785mm / 31" | 230mm / 9" | 205 mm / 8" | 35 kg / 76 lb |
| VX 910 | 160mm x 910mm / 6" x 36" l | 865mm / 34" | 990mm / 39" | 230mm / 9" | 205 mm / 8" | 42 kg / 92 lb |
| VX 1110 | 160mm x 1110mm / 6" x 44" l | 1065mm / 42" | 1195mm / 47" | 230mm / 9" | 205 mm / 8" | 49 kg / 109 lb |
| VX 1310 | 160mm x 1310mm / 6" x 51" l | 1245mm / 49" | 1395mm / 55" | 230mm / 9" | 205 mm / 8" | 57 kg / 126 lb |
| VX 1610 | 160mm x 1610mm / 6" x 63" l | 1525mm / 60" | 1675mm / 66" | 230mm / 9" | 205 mm / 8" | 68 kg / 150 lb |
Configurations
Add-Ons
Accessories

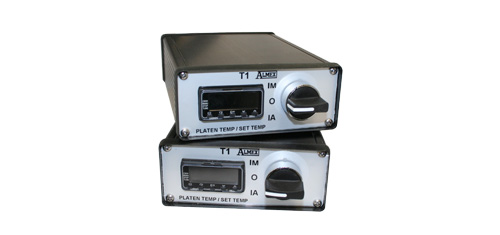

T1
T1

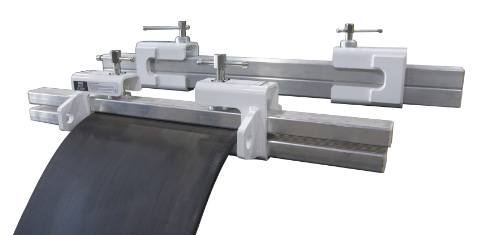

Almex Bar Clamp
