Outdoor weatherproof design suitable for multiple Inline Dust Control Application Point locations and large Multiple Application Point Containment Application Point Locations up to combined 4000 TPH conveyor capacity. The PumpPack 5500 is excellent for Intermittent Activation Spray Systems; the chemical flows well on demand.
- Compact arrangement 2 Multistage Pumps set-up in redundancy with mixing unit
- Programmable PLC interface
- Suitable for Large Hopper, Dump Pocket and Crusher Applications

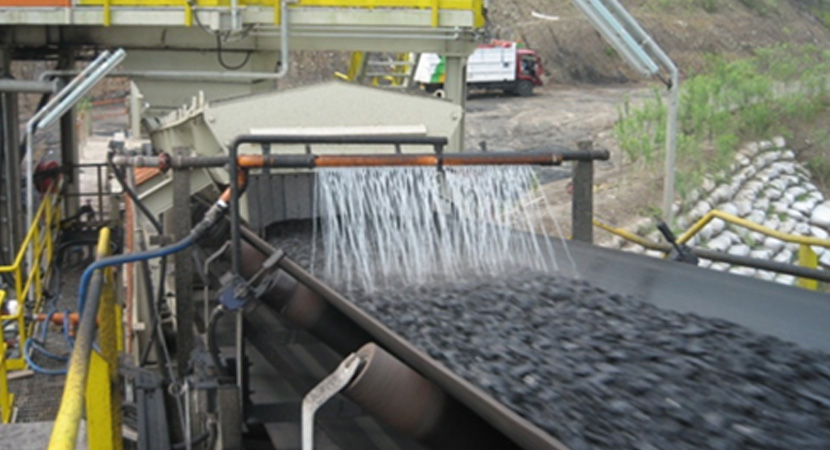

- Suitable for inline Dust Control Applications up to 4000 TPH belt conveyor capacity
- Easy to Operate External Controls
- NEMA Rated IP 55 Enclosure.
- Outdoor Weatherproof Design.
- For Single and Dual Application Point locations and Large Containment Applications, specially designed for use with surfactant based chemical treatments
|Capacity:||Max 25 M³ with Tt Head of 60 M.|
|Working Pressure:||Max 10 bar|
|Power Consumption:||1 x 15 Kw/3ph/380 V|
|Dimension :||H 112 cm X W 143 cm X L 50 cm|
|Operating mode:||Manual or Fully automatic|
|Display Control:||Wientek HMI 7” Interactive Touch Screen|
|Inlet Port:||Fresh water threaded type 3” dia|
|Chemical threaded type:||½” dia|
|Outlet Port:||Solution mixture threaded type 3” dia|
