PRO Series 100
Slide 1 of 6
ALMEX_IN_A_BOX
PRO Series 100
What you should know
  • Aluminum Frame
  • Solid steel bolts and nuts
  • Field-portable
  • Optional side handles
  • Quick and Easy setup
PRO Press Product Sheet
If you are looking for Operating Manuals or Safety Data Sheets, please request them on our Resources page.
 »

The PRO Series 100 is an aluminum frame style vulcanizing press that allows for quick and easy operations. With end handles and positioning rings (for larger models), the PRO Series 100 is easy to maneuver into the desired splice position.

Why Is Almex Different?
  • Solid aluminum frame
  • Steel rolled Bolts and nuts
  • Field-portable
  • Quick and easy setup
Features

Features

  • Available with either an operating pressure of 4kg/cm2 (60psi) or 7kg/cm2 (100psi).
  • Signature Almex "Pressure Bag" uniform pressure system.
  • Custom "Extruded Plank" cooling system within platens.
  • Platens built to order in either a rhombic or rectangular design.
  • Durable "Silicone Element" heating system, custom designed to voltage phase and cycle.
  • PRO CHROME Series 100 platens range from 355mm (14") up to 810mm (32"). Lengths vary from 510mm (20") to 22850mm (90"). Weights range from 64kg (142lb) to 685kg (1,510lb).
Specifications

PLATEN

Utilizes innovative Almex flexible platen constructed from extruded plank, silicone heating element and durable composite insulation. Each platen contours to belt irregularities, ensuring uniform results. Maximum temperature 163°C (325°F). Platens available, either rhombic or rectangular design.

FRAME

Two light and rugged aluminum frames comprise upper and lower portions of press. Ends equipped with retractable carrying handles on smaller models; sides are also equipped with spring handles.

PRESSURE/COOLING

Almex inflatable pressure system, made from durable fabric-reinforced rubber ensures uniform pressure across splice surface. Presses available for two pressure thresholds; PRO Series 100 - 7kg/cm2 (100 psi) maximum. Quick integral water cooling incorporated in platen design.

CONTROLS

Models of Control Box suitable for the PRO: T1, T2, T4, T6
T1F (Inframe, maximum 30 amps total) and T2 (remote, maximum 40 amps total) for 230 Volt single phase operation. T6 (remote, maximum 30 amps total) for three phase operation. T2 and T6 panels feature dual temperature control and indication systems. Optional timer available on T2 and T6.

Configurations
100 PSI100 PSI
RectangularRectangular
Bias 17°Bias 17°
Bias 22°Bias 22°
Add-Ons
Remote ControlRemote Control
Accessories
Belt Cutting Saw HBSC-001
Belt Cutting Saw HBSC-001
Belt Cutting Saw HBSC-001
HC1 Vulcanizing Splice Cement
HC1 Vulcanizing Splice Cement
HC1 Vulcanizing Splice Cement

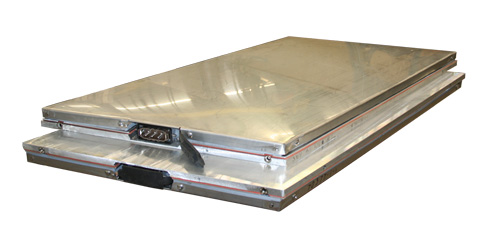

Spare Platen Set
Spare Platen Set
Spare Platen Set
Finger Splice Skiver Kit
Finger Splice Skiver Kit
Finger Splice Skiver Kit
Related Items

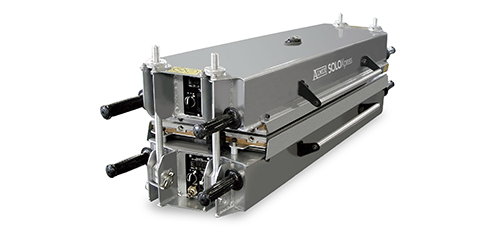

SOLO Xpress
SOLO Xpress
SOLO Xpress
PRO Chrome Series
PRO Chrome Series
PRO Chrome Series

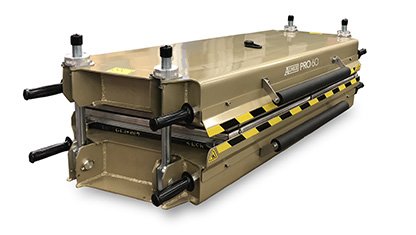

PRO Series 60
PRO Series 60
PRO Series 60
T6
T6
T6
T2
T2
T2
